If you’re looking at a Chevrolet Equinox EV, your first practical question is usually some version of: “How long does it take to charge?” The answer depends a lot on where you plug in, your 120‑volt wall outlet, a 240‑volt home Level 2 charger, or a highway DC fast charger. This guide walks through realistic charging times for the Equinox EV in each scenario, so you can decide what works for your daily life.
Quick answer
Chevy Equinox EV charging basics
Before we dive into exact numbers, it helps to understand the basics of how the Chevy Equinox EV charges. Like most modern EVs, it uses three main types of charging:
- Level 1 (120V) – Standard household outlet, very slow but works anywhere. Good for topping up, not for big charges.
- Level 2 (240V) – What most owners use at home and at many public stations. Much faster and the sweet spot for overnight charging.
- DC fast charging – High‑power public chargers usually found along interstates and major corridors. Best for road trips and big mid‑day top‑ups.
Chevrolet quotes that the Equinox EV can add about 76–84 miles of range in 10 minutes on a DC fast charger, and roughly 36 miles of range per hour on a typical 11.5 kW Level 2 charger. Those are great starting points, but in real life you’ll see different times depending on your battery state of charge, temperature, and the charger itself.
Equinox EV battery size and charging hardware
Chevy Equinox EV charging specs at a glance
Every Equinox EV uses GM’s Ultium 85 kWh battery pack and supports up to 150 kW DC fast charging. Most trims get an 11.5 kW onboard AC charger for Level 2 charging, while some higher trims can be optioned with a 19.2 kW onboard charger. That higher‑power onboard charger only matters when you’re plugged into a matching 19.2 kW Level 2 station or a sufficiently strong home circuit.
The key formula you’ll see throughout this guide is simple: Charging time ≈ Battery kWh added ÷ Charger kW. In the real world, the car won’t hold its maximum rate all the way to 100%, but this gives you a solid ballpark and helps compare options.
How long to charge a Chevrolet Equinox EV at home
Level 1 (120V) home charging time
Every Equinox EV can charge from a regular 120V household outlet using a portable cord. That’s convenient on day one, but it’s the slowest way to add energy to an 85 kWh pack.
Chevy Equinox EV Level 1 charging time (typical U.S. 120V outlet)
Approximate times assuming about 1.4 kW (120V, 12A) continuous draw and no major losses. Real‑world times can be longer.
| Charge scenario | Energy added | Approx. time | Miles of range added* |
|---|---|---|---|
| 10% to 80% | ~60 kWh | ~43 hours | ~225–245 miles |
| 20% to 80% | ~50 kWh | ~36 hours | ~190–205 miles |
| 50% to 80% | ~25 kWh | ~18 hours | ~95–100 miles |
| 10% to 100% | ~75 kWh | ~54 hours | ~280–300 miles |
Level 1 is fine for very light use, but too slow to rely on for a large battery like the Equinox EV’s.
Reality check on 120V charging

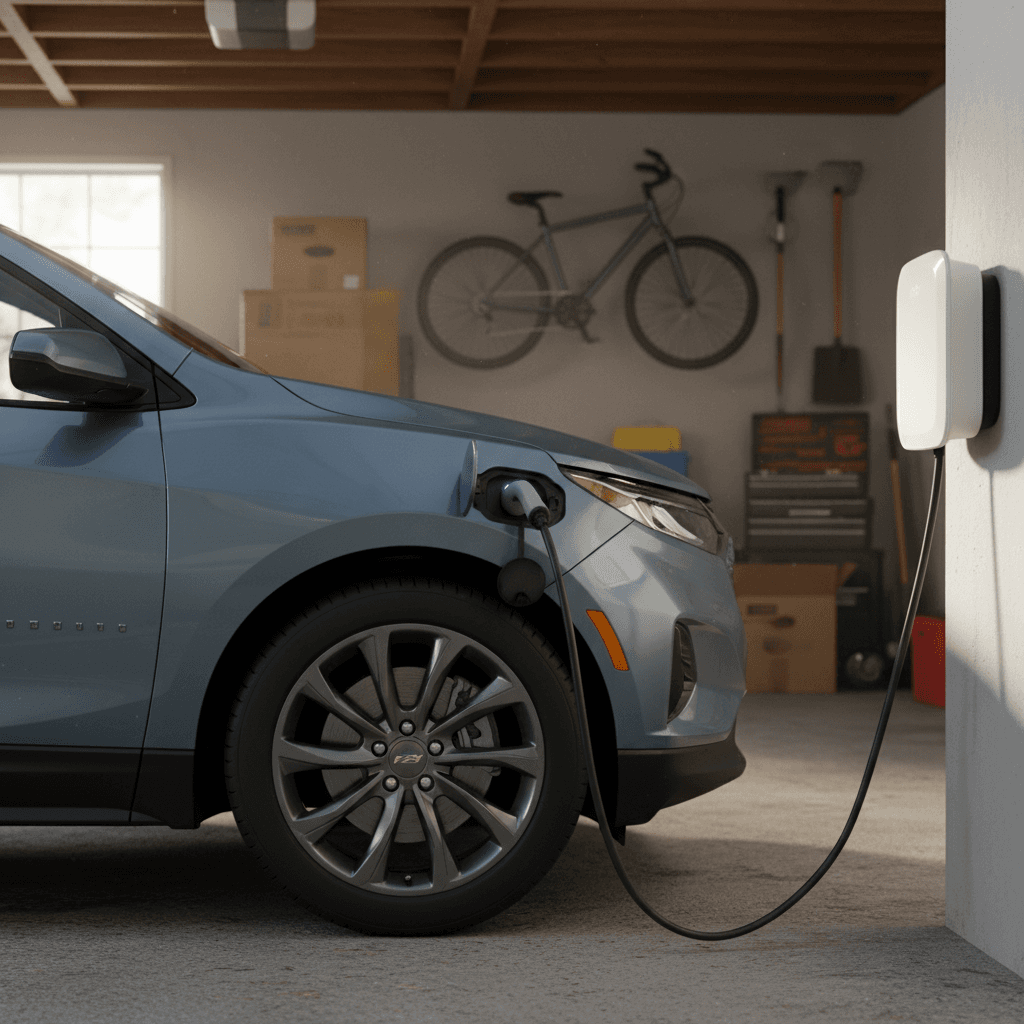

Level 2 (240V) home charging time
Level 2 is where the Equinox EV really makes sense as a daily driver. With a 240V circuit and a home charging station, you can refill the pack overnight instead of over a weekend.
Common home Level 2 setups for the Equinox EV
How long it takes to charge on different 240V circuits
32A Level 2 (7.7 kW)
Typical 40A circuit, many entry‑level wallboxes.
- 10–80% (~60 kWh): ~8–9 hours
- 0–100% (~80 kWh): ~10–11 hours
- Good for: 40–60 mi/day drivers
48A Level 2 (11.5 kW)
Standard onboard charger on most Equinox EVs.
- 10–80%: ~5.5–6 hours
- 0–100%: ~7–8 hours
- Good for: Most suburban commuters
80A Level 2 (19.2 kW capable trim)
Requires optional 19.2 kW onboard charger and a robust home circuit.
- 10–80%: ~3.5–4 hours
- 0–100%: ~4.5–5 hours
- Good for: High‑milers, fleets
A simple way to think about it
If you’re shopping for a used Equinox EV, ask which onboard charger it has and what the previous owner used at home. A car that lived on gentle overnight Level 2 charging tends to have a happier battery than one that lived on DC fast chargers.
Public Level 2 charging time for Equinox EV
Many workplaces, parking garages, and shopping centers offer public Level 2 charging, essentially the same thing you’d install at home. Power can range from 6–19 kW, but 6–11 kW is most common.
Slower public Level 2 (6–7 kW)
Some older or shared public stations are limited to around 6–7 kW, even though your Equinox EV can handle more.
- 10–80% (~60 kWh): about 9–10 hours
- Good for: All‑day workplace charging, airport parking, overnight hotels
Faster public Level 2 (9–11 kW)
Newer stations in office parks and apartments often deliver 9–11 kW.
- 10–80%: roughly 5.5–7 hours
- Good for: Full workday top‑ups, long dinners plus a movie
Don’t obsess over 0–100% on Level 2
DC fast charging time for the Equinox EV
DC fast charging is what makes an electric crossover like the Equinox EV work for road trips. Chevy says the Equinox EV can accept up to 150 kW of DC power and add roughly 76–84 miles of range in 10 minutes, depending on whether you’re in FWD or AWD form.
Approximate DC fast charging times for the Chevy Equinox EV
Realistic estimates assuming a brief 150 kW peak, then a taper that averages in the 90–100 kW range from 10–80% on a healthy battery in mild weather.
| Charge scenario | Energy added | Typical time window | When to use |
|---|---|---|---|
| 10% to 60% | ~42 kWh | ~25–30 minutes | Efficient splash-and-go stop on the highway |
| 10% to 80% | ~60 kWh | ~40–45 minutes | Standard road‑trip stop for most drivers |
| 20% to 80% | ~50 kWh | ~35–40 minutes | You arrived with more buffer, can leave sooner |
| 10% to 100% | ~75 kWh | ~65–80 minutes | Only when you truly need the full pack |
On a good 150 kW DC fast charger, plan on roughly 40–45 minutes for a 10–80% Equinox EV top‑up.
Why the last 20% feels so slow
Real-world vs. advertised charging times
Automaker numbers and reality are cousins, not twins. Chevy’s own site says the Equinox EV can go from 10% to 80% in about 42 minutes on a DC fast charger, and owners’ logs generally line up with that ballpark, some see a bit less, some a bit more depending on conditions.
What actually affects your Equinox EV charging time?
Four big variables that change how long you’ll sit at a charger
Battery & air temperature
State of charge
Charger capability
Shared power & congestion
At home on Level 2, your speeds are more predictable. A correctly wired 48‑amp (11.5 kW) station in a typical U.S. garage will reliably deliver that ~30–35 miles of range per hour, barring extreme temperatures or utility limits.
How to choose the right charging setup for your Equinox EV
Match your Equinox EV charging to your life
1. Be honest about your daily miles
Track a typical week. If you drive 30–50 miles a day, an 11.5 kW Level 2 charger will feel luxurious. If you routinely do 150‑mile days, you’ll appreciate faster home charging or regular DC fast‑charging stops.
2. Decide if Level 1 is truly enough
If your Equinox EV mostly sits and your commute is under 15 miles round‑trip, you might limp by on 120V. For anything more, a 240V Level 2 upgrade is absolutely worth it.
3. Check your electrical panel
A 48‑amp Level 2 charger usually needs a 60‑amp breaker. Before you fall in love with a high‑power unit, have an electrician confirm that your panel, and parking space, can support it safely.
4. Consider future EVs or drivers
If you might add a second EV, buy once and cry once. Running a heavier‑duty circuit and installing a flexible Level 2 charger now can save you money and hassle later.
5. Factor in charging convenience, not just speed
A slightly slower charger you can use every night is often better than a lightning‑fast DC station 20 minutes away. Convenience beats maximum kilowatts for day‑to‑day life.
6. If you’re buying used, ask how it was charged
When you shop for a used Equinox EV on Recharged, look at the <strong>Recharged Score</strong> and battery health report, and don’t be shy about asking the prior owner how often they fast‑charged vs. charged at home.
Where Recharged fits in
Ready to find your next EV?
Browse VehiclesCharging-time tips to protect Equinox EV battery health
How long it takes to charge is one thing; how you treat the battery while you’re doing it is another. The Equinox EV’s pack is designed to last, but your habits still matter.
- Live in the middle of the battery: For daily driving, try to keep the Equinox EV between about 20% and 80% instead of bouncing between 0 and 100% all the time.
- Use DC fast charging as a tool, not a lifestyle: Occasional 10–80% fast‑charge sessions are fine. Making them your only charging strategy will add heat and stress over the long haul.
- Let the car manage preconditioning: Use the myChevrolet app or in‑car settings so the battery is warmed or cooled before a DC fast‑charge stop. That shortens your wait time and is easier on the pack.
- Charge slower when you’re not in a hurry: There’s no prize for finishing a home charge in 4 hours instead of 7. If your charger or utility lets you limit current, slower overnight charging is gentler on everything.
- Avoid baking the pack full: Parking a fully charged EV in hot sun all day isn’t ideal. If you don’t need the full range, set a lower charge limit for daily use.
“The best EV charging pattern is boring: plug in at home, add back what you used, and arrive at road‑trip fast chargers with a warm battery under 30%.”
FAQ: Chevrolet Equinox EV charging times
Common Equinox EV charging time questions
Bottom line: how long it really takes to charge an Equinox EV
If you boil down all the charts and caveats, living with a Chevrolet Equinox EV is straightforward. On a typical home Level 2 setup, you’ll go from low to full while you sleep. On a highway DC fast charger, you’ll stop for roughly 40–45 minutes to jump from about 10% to 80%, just long enough for a bathroom break and a sandwich. Level 1 will work in a pinch, but it’s too slow to be your main plan for such a large battery.
If you’re comparing EVs or thinking about a used Chevrolet Equinox EV, charging time is only half the story. Battery health, pricing, and the right home setup matter just as much. That’s where Recharged comes in: every EV on our marketplace includes a detailed Recharged Score Report, transparent battery diagnostics, and guidance from EV specialists who’ve spent years living with these cars. So when you decide an Equinox EV fits your life, and your outlet, you’ll know exactly what you’re getting.
