Electric vehicle technology has moved from science project to daily reality in just over a decade. In 2025, an electric vehicle (EV) is less about a single breakthrough and more about how batteries, motors, software, and charging networks work together. If you’re comparing EVs, or deciding whether to buy a new or used one, it helps to understand what’s really under the skin.
Big picture
Today’s EV technology is defined by three core systems: the high-voltage battery pack, the electric drive unit (motor + inverter + gearbox), and the software that ties everything together with charging and safety systems.
How electric vehicle technology fits together
1. Energy storage: the battery pack
The battery pack is the EV’s fuel tank and chassis backbone. It stores electrical energy (measured in kilowatt-hours, or kWh) and usually lives under the floor for better safety and handling.
- Typical packs today: 50–120 kWh
- Main chemistries: NMC/NCA (long range) and LFP (durability, lower cost)
- Managed by a battery management system (BMS) that controls temperature, charging, and safety
2. Turning energy into motion
Power electronics and motors convert stored energy into torque at the wheels. Instead of pistons, you get:
- Inverter – turns battery’s DC power into AC for the motor
- Electric motor – usually permanent-magnet or induction type
- Single-speed reduction gear – no multi-gear transmission needed
Modern EVs add regenerative braking, which uses the motor as a generator to recapture energy when you slow down.
- A low-voltage (12V or 48V) system powers lights, infotainment, and accessories.
- High-voltage cables connect the battery to the inverter, onboard charger, and DC fast-charging port.
- Cooling loops manage battery, motor, and power electronics temperature so they stay in a safe, efficient range.
- Software orchestrates everything, safety interlocks, traction control, charging limits, and over-the-air updates.
How this helps you compare EVs
Instead of just looking at 0–60 times, look at the trio of battery capacity (kWh), charging speed (kW), and efficiency (miles per kWh). Together, they tell you how far you’ll actually go and how often you’ll need to stop.

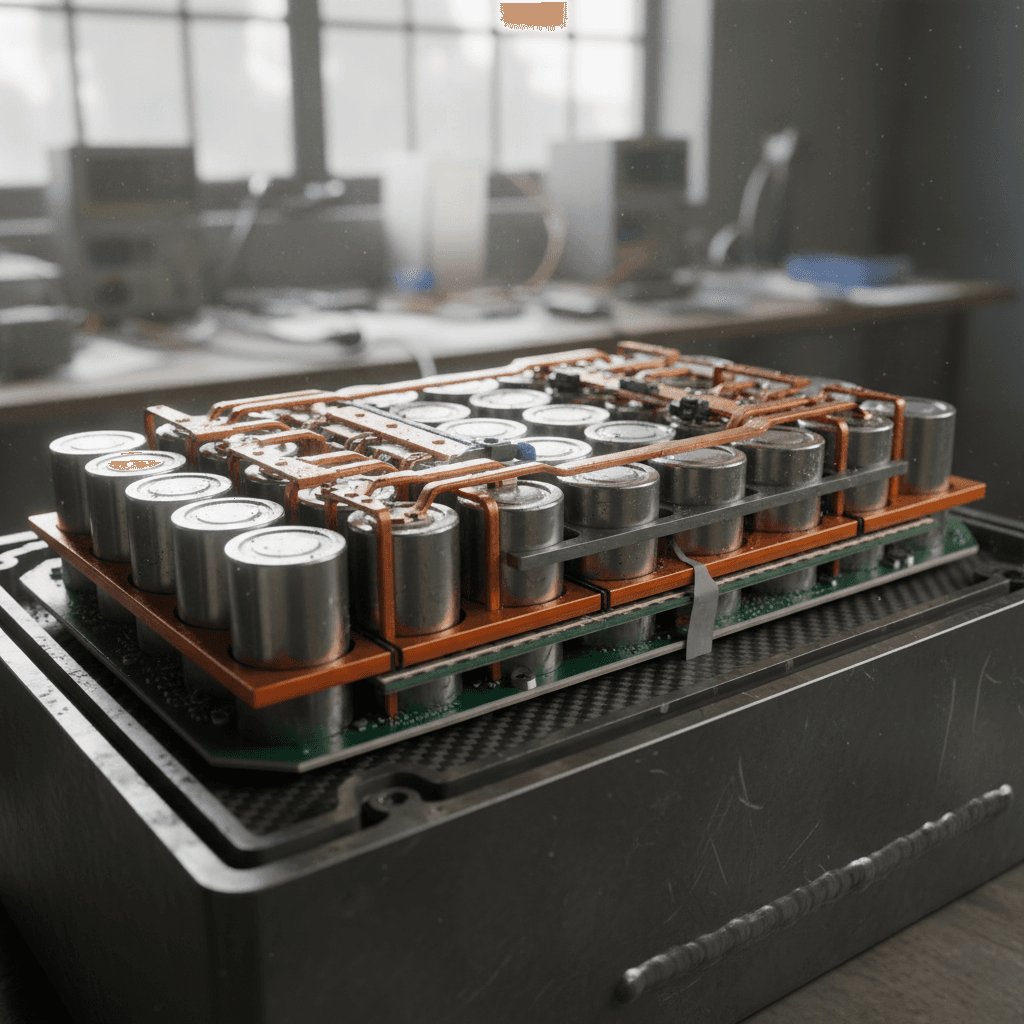

Inside an EV battery pack
The battery pack is a carefully engineered box of hundreds or thousands of individual cells, grouped into modules and connected in series and parallel. Today’s lithium-ion batteries dominate because they offer a good balance of energy density, cost, and durability.
EV battery technology by the numbers (2024–2025)
Most EVs today use one of two main chemistries:
NMC/NCA (nickel-manganese-cobalt / nickel-cobalt-aluminum) packs deliver high energy density and long range, and they’re common in premium and long-range models. LFP (lithium-iron-phosphate) packs trade some energy density for lower cost, very long cycle life, and better tolerance of frequent fast charging, popular in entry and mid-range EVs.
NMC vs LFP: how the main EV battery chemistries compare
You’ll increasingly see battery type listed on window stickers and spec sheets.
NMC / NCA (high-energy packs)
- Pros: Higher energy density, longer range, lighter packs.
- Typical use: Premium EVs, performance models, long-range trims.
- Considerations: Uses nickel and cobalt; tends to cost more per kWh.
LFP (durability-first packs)
- Pros: Excellent cycle life, stable chemistry, often lower cost.
- Typical use: Entry EVs, fleet vehicles, shorter-range trims.
- Considerations: Slightly heavier for the same range; cold-weather performance can require more preconditioning.
Don’t judge by kWh alone
A 77 kWh pack in one EV can deliver more range than an 82 kWh pack in another if the second vehicle is less efficient. Always look at EPA range and real-world road tests, not just battery size.
Emerging battery technologies: solid-state and beyond
Lithium-ion is still the workhorse of electric vehicle technology, but the next wave is coming. Automakers and suppliers are racing to commercialize solid-state batteries and improved chemistries that promise more range, faster charging, and lower costs.
- Solid-state batteries replace the flammable liquid electrolyte with a solid material, improving safety and enabling higher energy density. Major players plan first mass-produced solid-state EVs around 2027–2028, with early volumes likely in premium models.
- Silicon-rich anodes are being developed to store more energy in the same space. Startups and cell makers are working on silicon anode designs that improve range without sacrificing cycle life.
- Manganese-rich and cobalt-free chemistries aim to cut costs and reduce reliance on constrained raw materials while keeping performance high. These are scheduled to reach volume later this decade.
Where we really are on solid-state
Despite headlines, solid-state EV batteries are still at the large pilot stage. You may see the first solid-state production cars around 2027–2028, but most EVs sold through the end of this decade will still use advanced lithium-ion packs.
Electric motors, inverters, and 800V architectures
If the battery is the fuel tank, the electric drive unit is the engine and transmission rolled into one. Modern EVs combine compact motors with powerful inverters and simple single-speed gearboxes, delivering instant torque and quiet acceleration.
Common EV motor and powertrain technologies
Understanding the basics helps you decode spec sheets and marketing claims.
Permanent-magnet motors
Most EVs use permanent-magnet synchronous motors for their high efficiency and compact size. They’re great for range and performance but require rare-earth materials.
Induction motors
Some EVs use AC induction motors, especially on secondary axles, because they’re robust and don’t rely on permanent magnets. They can be slightly less efficient but are proven and durable.
800V & 900V architectures
Higher-voltage systems reduce current for the same power, enabling thinner cables, cooler operation, and very fast DC charging. Flagship EVs now reach 800V or even 900V, with DC fast-charging peaks of 350–600 kW on compatible hardware.
Real-world benefit: faster charging and better efficiency
A well-engineered 800V system doesn’t just sound futuristic. It lets your EV pull high power from fast chargers more efficiently, shortening road-trip stops and keeping components cooler, which can help long-term reliability.
EV charging technology: from Level 1 to ultra-fast DC
Charging is where electric vehicle technology meets your daily routine. The core idea is simple, move energy from the grid into the battery, but the details matter for cost, convenience, and long-term battery health.
Charging levels and what they mean in practice
Approximate numbers for a typical mid-size EV in 2025; your exact results will vary by model.
| Charging type | Typical power | Where you see it | Approx mi/hour added* |
|---|---|---|---|
| Level 1 (120V AC) | 1–1.5 kW | Standard household outlet | 3–5 mi/hr |
| Level 2 (240V AC) | 7–19 kW | Home wallbox, workplace, many public stations | 20–45 mi/hr |
| DC fast (400V) | 50–200 kW | Highway sites, travel corridors | 150–250 mi in 30–40 min |
| High-power DC (800V+) | 250–350+ kW | Next-gen fast chargers on major corridors | 200–300 mi in 15–25 min |
Use these ranges as planning tools, not promises, real charging speeds depend on battery temperature, state-of-charge, and charger capability.
Connector alphabet soup, simplified
In North America, the industry is converging on the NACS (Tesla-style) connector for DC fast charging and AC charging. Non-Tesla EVs are adding NACS ports or shipping with adapters as networks upgrade, while older vehicles continue to use CCS and J1772 ports with appropriate adapters.
Visitors also read...
- Onboard charger (OBC): AC charging is limited by the car’s onboard charger, if your EV has a 11 kW OBC, that’s your ceiling on Level 2, even if the station can deliver more.
- Charging curve: Fast-charging power is highest when the battery is relatively empty and tapers as it fills. That’s why 10–80% is often quoted as the key fast-charging window.
- Bidirectional charging: Newer EVs support vehicle-to-load (V2L), vehicle-to-home (V2H), or even vehicle-to-grid (V2G), letting you power tools, your house, or in some cases support the grid during peak demand.
Safety note
You should never modify high-voltage wiring or install a 240V circuit yourself. Always use a licensed electrician and follow manufacturer guidance for home charging. This protects both your safety and your EV’s warranty.
Software, sensors, and the modern EV driving experience
Ask any EV owner what surprised them most, and many will say it feels more like a rolling computer than a car. Electric vehicle technology is increasingly software-defined, with features, performance, and even efficiency changing through over-the-air (OTA) updates.
Key software-driven EV technologies
These features vary widely between brands, and they’re worth comparing when you shop.
Connected navigation & route planning
Modern EV nav systems factor in elevation, weather, and charger availability, then plan your route and charging stops. Some integrate directly with fast-charging networks for plug-and-charge billing.
Over-the-air updates
Automakers routinely push updates that tweak battery management, charging curves, driver-assistance features, and infotainment, sometimes adding range or features without a service visit.
Advanced driver assistance
EVs often debut the latest ADAS tech, adaptive cruise, lane-centering, automated parking, and increasingly sophisticated highway assist systems that rely on powerful onboard computers and dense sensor suites.
In 2025, the biggest EV upgrades often arrive as software, not hardware. The automakers that ship improvements over time tend to earn the most loyal buyers.
Data and privacy
All that connectivity means your EV collects data about driving behavior, location, and charging habits. Check what your automaker shares and how to adjust privacy settings if that matters to you.
Battery health diagnostics and buying a used EV
For new EVs, you can largely trust the factory warranty. For used electric vehicles, the key tech question is battery health: How much capacity has the pack lost, and how quickly is it degrading? That’s where dedicated battery diagnostics come in.
Why battery health transparency is exploding
Recharged was built around this problem. Every vehicle on the platform comes with a Recharged Score Report, which includes verified battery health, pack diagnostics, and pricing benchmarks based on actual capacity, not just odometer readings. That makes it much easier to compare, say, a three-year-old crossover with 95% remaining capacity to a five-year-old sedan with 87%, and price them accordingly.
Used EV battery technology checks
1. Look for third-party battery health reporting
Ask for a recent battery health report or an inspection that shows remaining capacity and any imbalance between modules. A platform like Recharged includes this in its Score Report by default.
2. Confirm remaining factory warranty
Most EVs carry separate battery warranties, often 8 years and a set mileage with a capacity guarantee. Check the in-service date and current mileage to see what coverage remains.
3. Review DC fast-charging history if available
Heavy reliance on fast charging doesn’t automatically ruin a pack, but a mix of home Level 2 and occasional fast charging is generally best for longevity. Some diagnostics tools and seller reports summarize this usage.
4. Check for software and recall updates
Battery and charging behavior can be altered through software. Make sure the vehicle has received key firmware updates and any battery-related recalls or service campaigns.
How Recharged simplifies the tech
Instead of asking you to interpret raw state-of-health numbers and cell voltages, Recharged wraps battery diagnostics, pricing, and expert guidance into one report, so you can shop used EVs with the same confidence you’d expect from a well-inspected gas car, but with better data.
Future trends in electric vehicle technology
Electric vehicle technology is evolving quickly, but several trends are clear between now and the early 2030s. If you’re buying an EV today, new or used, it’s worth understanding where the tech is headed so you’re not surprised by what comes next.
Where EV technology is headed next
These trends are already visible in 2025 product plans and pilot projects.
Higher energy density packs
Expect gradual range increases and smaller, lighter packs as new chemistries and silicon-rich anodes roll out. Solid-state pilots are targeting premium models late this decade, with mass adoption later.
Denser and smarter fast-charging networks
More high-power DC stations, better uptime, and plug-and-charge authentication will make public charging less stressful, especially as NACS becomes common across brands.
Bidirectional EVs as home energy assets
Vehicle-to-home and vehicle-to-grid capability will turn EVs into rolling batteries. That means backup power for outages and potential bill savings when paired with time-of-use rates and home energy management systems.
More automation and software-defined features
From hands-free highway driving to self-parking and subscription-based performance boosts, EVs will increasingly be defined by computing platforms and software ecosystems rather than mechanical hardware alone.
Thinking about future-proofing
If you plan to keep your next EV for 8–10 years, focus less on chasing the absolute latest lab breakthrough and more on choosing a model with solid support, strong charging compatibility, and a robust track record, or, for used vehicles, clear battery health documentation like the Recharged Score.
Electric vehicle technology checklist for buyers
Quick tech checklist when comparing EVs
Battery size, chemistry, and range
Compare usable battery capacity (kWh), chemistry (LFP vs NMC/NCA), and EPA-rated range. Favor models that balance range with efficiency rather than just chasing the biggest pack.
Charging speed and connector
Check maximum AC and DC charging rates, plus connector type (NACS, CCS). Think about where you’ll charge most often, home, work, or on road trips, and match the car’s capabilities to that profile.
Thermal management
Look for liquid-cooled packs and confirmed thermal management on both battery and power electronics, especially if you live in extreme climates or plan frequent DC fast charging.
Software and updates
Consider how often the automaker updates vehicles over the air, how polished the infotainment feels, and how reliable the driver-assistance features are in independent tests.
Battery health transparency (for used EVs)
Prioritize vehicles with documented battery health. On Recharged, every used EV includes a Recharged Score Report with verified diagnostics, pricing context, and EV-specialist support to walk you through the details.
Electric vehicle technology FAQ
Electric vehicle technology FAQ
The bottom line on electric vehicle technology
Electric vehicle technology in 2025 is far more mature than the early days of niche compliance cars. Batteries are bigger and smarter, drivetrains are more efficient, and charging networks are denser and faster. At the same time, the next wave, solid-state batteries, widespread bidirectional charging, and ever more sophisticated software, is already in view.
You don’t need to be an engineer to make a smart EV decision. Focus on the fundamentals: battery health and chemistry, charging speed and access, and software support over time. If you’re looking at the used market, insist on clear, data-backed battery diagnostics. With tools like the Recharged Score Report and EV-specialist guidance, you can let the technology work for you, delivering lower operating costs, smooth performance, and a quieter commute, without getting lost in the acronyms.
