If you’re shopping for an electric car, you’ll hear a lot about battery size, range, and charging speed. But the EV motor is the quiet hero that turns electrons into motion. Understanding EV motors, how they work, the main types, and how they affect performance and longevity, will help you choose the right electric vehicle, especially if you’re considering a used EV.
Quick definition
When people talk about EV motors, they’re usually talking about the traction motor, the electric motor that actually drives the wheels. It’s the electric replacement for a gasoline engine and transmission.
What is an EV motor? The heart of the drivetrain

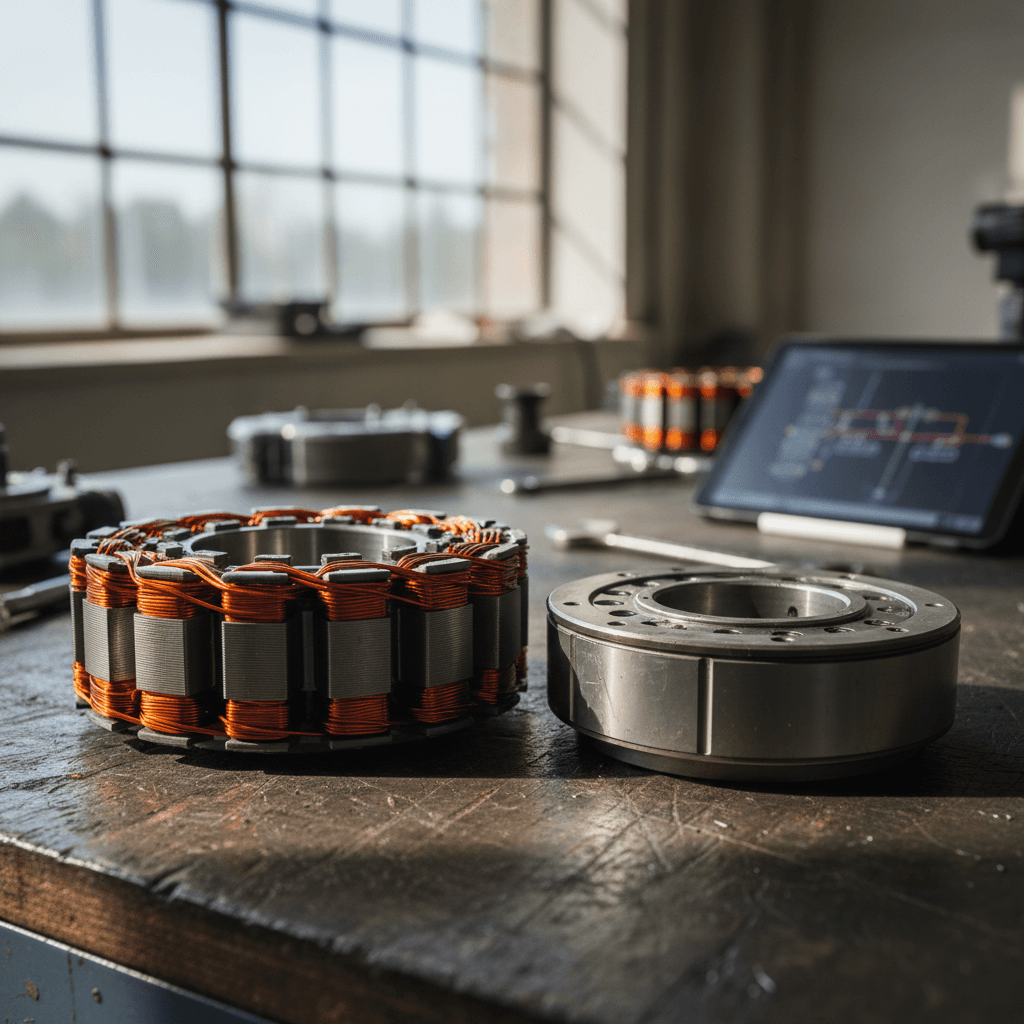

An EV motor (often called a traction motor) is an electric machine that converts electrical energy from the battery into mechanical energy at the wheels. Instead of hundreds of moving parts like a gasoline engine, most modern EV motors have a handful: a stationary outer section called the stator and a rotating inner section called the rotor connected to the wheels through a simple gear reduction.
- The battery sends high‑voltage DC power to the inverter.
- The inverter converts DC to AC and precisely controls frequency and voltage.
- The motor’s stator creates a rotating magnetic field.
- The rotor follows that field, spinning the wheels with instant torque.
Why this matters to you
Because EV motors are so simple, they’re typically more reliable than internal combustion engines and need far less routine maintenance, especially important if you’re buying used.
How EV motors work in plain English
Under the skin, EV motors are beautiful pieces of physics, but you don’t need a degree to understand the basics. Think of the stator as a ring of electromagnets and the rotor as a magnetic drum inside that ring. By switching those electromagnets on and off in a carefully timed pattern, the stator creates a spinning magnetic field that drags the rotor around with it.
EV motor basics in three concepts
If you understand these, you understand EV motors.
Magnetism
Instant torque
Simple gearing
Don’t confuse motor and inverter
The inverter is the power electronics box that feeds and controls the motor. It’s separate from the motor itself, but they’re increasingly packaged together as a single drive unit.
The main types of EV motors today
Not all EV motors are the same. Automakers choose different designs to balance cost, performance, efficiency, and material availability. The big three you’ll see in spec sheets and technical breakdowns are permanent magnet motors, induction motors, and switched reluctance or axial-flux designs that are starting to appear in next‑gen EVs.
Common EV motor types
Each has a personality, and trade‑offs.
Permanent magnet synchronous (PMSM)
Induction (asynchronous) motor
Reluctance & axial‑flux motors
Permanent magnet motors: The efficiency kings
Permanent magnet synchronous motors (PMSMs) dominate the EV world today. They use powerful magnets embedded in the rotor plus the stator’s switching magnetic field to deliver high torque in a compact package. In 2024, many industry analyses estimated that permanent magnet designs account for the majority of EV traction motors, thanks to their efficiency and size advantages.
- Excellent efficiency across most of the speed range (great for range).
- High torque density, more power from a smaller, lighter package.
- Compact size makes packaging easier in front or rear axles.
The rare‑earth catch
The downside to permanent magnet motors is their reliance on rare‑earth materials like neodymium. Prices and supply can be volatile, which is why you’ll hear about automakers developing magnet‑reduced or magnet‑free motors for future models.
Induction motors: Tough and magnet‑free
Induction motors (sometimes called asynchronous motors) don’t use permanent magnets at all. Instead, the rotor is made of conductive bars; when the stator’s magnetic field sweeps around, it induces current in those bars and creates torque. Induction designs are robust, relatively inexpensive, and avoid rare‑earth materials entirely.
- No permanent magnets, less exposure to rare‑earth supply swings.
- Very robust with fewer magnet‑related failure modes.
- Slightly less efficient at part load, which can cost a bit of range in everyday driving.
Switched reluctance and axial‑flux: The next wave
A newer crop of switched reluctance and axial‑flux motors is moving from engineering labs into production EVs. These motors aim to combine the efficiency of permanent magnet designs with lower material cost, or to pack more power into less space, especially useful for performance EVs and trucks where every inch of underbody space matters.
What about in‑wheel hub motors?
You’ll sometimes hear about hub motors, motors mounted directly inside each wheel. They promise great packaging flexibility and all‑wheel torque vectoring, but they add weight where you least want it (at the wheels) and face harsh vibration and impact loads. For now, they’re more common in low‑speed vehicles and prototypes than mainstream passenger EVs.
Single vs dual motors and all-wheel drive
Walk a dealer lot or browse used EV listings and you’ll see badges like “Dual Motor,” “AWD,” or “Performance.” All of that comes down to how many EV motors are in the car and where they sit.
Single‑motor EVs
- One motor on either the front or rear axle.
- Usually the most efficient configuration, fewer losses, less weight.
- Plenty of performance for commuting and normal driving.
- Often rated for the longest range in the lineup.
Dual‑motor / AWD EVs
- One motor on each axle, enabling all‑wheel drive.
- Quicker acceleration and better traction in bad weather.
- Slightly lower range due to extra weight and drivetrain losses.
- Sometimes use different motor types front vs rear to balance cost and efficiency.
Visitors also read...
Choosing between single and dual motors
If you live in a mild climate and mostly drive on paved roads, a single‑motor EV will likely be more efficient and cheaper. If you want strong all‑weather traction or maximum acceleration, the extra motor in an AWD EV can be worth the range and price penalty.
EV motor market at a glance
Behind every EV on the road is at least one traction motor, and often two. As EV adoption accelerates worldwide, the market for EV motors has become a massive, fast‑growing business.
The EV traction motor market in numbers
How EV motors shape performance and driving feel
If you’ve driven an EV, you already know: the way an electric motor delivers torque changes everything. There’s no waiting for a transmission to downshift or a turbo to spool. Motor design and control software together dictate how your EV feels every time you press the accelerator.
What you feel from the driver’s seat
All of it traces back to EV motors and control software.
Launch feel
Smoothness
Regen braking
Bonus: better energy use
High‑efficiency EV motors mean more of the energy you pay for at the plug actually moves the car. That’s a big reason EVs can go 3–4 miles per kWh in everyday driving.
EV motors, reliability, and battery health
One of the pleasant surprises for many first‑time owners is how little attention EV motors themselves need. There’s no oil to change, no spark plugs, no fuel system to clog. For most drivers, the battery will age faster than the motor, so when you’re evaluating a used EV, you should worry more about battery health than motor wear.
Where EV motors can fail
Modern EV motor failures are relatively rare, but can stem from bearings, coolant leaks into the motor housing, or issues with the integrated inverter. These are the kinds of issues a good inspection or a detailed health report can flag early.
At Recharged, every used EV comes with a Recharged Score Report that focuses on the thing most likely to change your ownership experience: verified battery health. Paired with expert guidance on the motor, inverter, and charging system, it gives you a clear view of how the whole drivetrain has aged, before you buy.
What to look for in EV motors when buying a car
Most shoppers don’t need to become motor engineers. But a few key questions about EV motors can help you compare models and spot the right fit for your driving.
EV motor checklist for shoppers
1. How many motors does it have?
Check whether the car is single‑motor (FWD or RWD) or dual‑motor AWD. Single‑motor setups usually offer more range for the money; dual‑motor versions add performance and traction.
2. What’s the horsepower and torque?
Power ratings give you a basic sense of acceleration. Just remember that software can limit output, so two cars with similar motors can feel very different.
3. Is it permanent magnet or induction?
You may see this in spec sheets or enthusiast forums. Permanent magnet motors are typically more efficient; induction motors avoid rare‑earth magnets. Either can be a smart choice depending on the rest of the design.
4. How is the motor cooled?
Liquid‑cooled motors and inverters handle sustained power better, important for heavy towing, track use, or steep mountain driving.
5. What’s the repair track record?
Search owner forums and reliability reports for motor or drive‑unit issues on the model you’re considering. Some early EVs had specific bearing or seal problems that were later fixed.
6. What does the inspection say?
If you’re buying used, insist on a high‑voltage system inspection. At Recharged, EV‑specialist technicians evaluate the drive unit, charging hardware, and battery before a vehicle is listed.
High‑voltage is not DIY
Modern EV motors sit inside a high‑voltage ecosystem: battery pack, inverter, DC‑DC converter, onboard charger, and cabling. Diagnosing or repairing these systems is specialized work, always use technicians trained on EVs.
The future of EV motors: What’s coming next
EV motor technology is evolving quickly, even if much of the action is hidden deep in the powertrain. Over the next decade you can expect EV motors to get lighter, more efficient, and less dependent on rare‑earth materials, all of which translates to more range and performance from the same size battery.
Key trends shaping next‑gen EV motors
These engineering moves will quietly make future EVs better to own.
Higher power density
Fewer rare‑earths
Integrated drive units
Traction motors are the heart of electric mobility, converting electrical energy into motion with remarkable efficiency and shaping how every EV feels on the road.
Where Recharged fits in
When you buy a used EV through Recharged, you’re not just getting a car, you’re getting a verified snapshot of its electric drivetrain. From battery health to charging behavior and drive‑unit performance, our specialists help you understand how that specific EV motor has been used and what you can expect in real‑world driving.
EV motors FAQ
Frequently asked questions about EV motors
You don’t need to memorize every motor topology to make a smart EV purchase. But understanding what EV motors do, how they differ, and how they affect range, performance, and longevity can help you read spec sheets with confidence, and ask better questions on a test drive. If you’re exploring the used EV world, Recharged combines deep diagnostics, verified battery health, and EV‑specialist support so you can focus on what really matters: finding an electric car whose motor and battery are ready for your next decade of driving.
