You can learn a lot about a crossover from its rear hatch. The Chevrolet Equinox EV cargo space dimensions tell you whether this compact electric SUV is a Target run car, a Home Depot car, or a "kids, bikes, dog, and camping gear" car. The official numbers only tell half the story; the shape of the space, the floor height, and the seat-fold angle decide how livable it really is.
Key cargo numbers at a glance
Chevrolet Equinox EV cargo space: quick overview
Chevy Equinox EV cargo stats (official)
On paper, the Equinox EV is mid-pack for compact electric SUVs. In practice, it punches above its spec sheet thanks to a wide hatch opening, mostly square walls, and that two-level cargo floor. If you’re cross-shopping with a Model Y, Ioniq 5, or Nissan Ariya, this is a space play, not a speed play.
Official Equinox EV cargo volume specs
Chevrolet Equinox EV cargo volume by configuration
Factory-rated cargo volume for the Chevrolet Equinox EV in the most common seat configurations.
| Configuration | Cargo volume (cu ft) | What it means in real life |
|---|---|---|
| Behind 2nd row (seats up) | 26.4 | Groceries, strollers, or 4+ full-size suitcases for a typical family trip. |
| Behind front row (seats folded) | 57.2 | Flat load floor good for bikes, small furniture, or car-camping setups. |
| Underfloor bin (approx.) | 2–3 | Hidden well for charging cables, emergency kit, or small duffels. |
| Passenger capacity | 5 | Two adults up front, three across in the rear. Cargo figures assume all seats in place. |
Exact figures can vary slightly by trim and measurement method, but these are the headline numbers Chevrolet and major reviewers quote.
Think in “scenarios,” not cubic feet
Equinox EV cargo dimensions in inches
Manufacturers rarely publish full cargo space dimensions in inches, but early owners have broken out tape measures in their driveways. The numbers below are approximate, compiled from owner measurements and typical compact-SUV packaging. Always bring your own tape measure if you need millimeter-perfect confirmation.
- Load floor width (between side panels): roughly 40–42 inches at the narrowest point, wider above the wheel wells. Wide enough for most strollers sideways or two large suitcases side by side.
- Maximum width at hatch opening: roughly 44–46 inches across the lower opening.
- Length behind 2nd row (floor to seatback): about 36–38 inches with the load floor in the upper position.
- Length with 2nd row folded (floor to front seats): around 60 inches (about 5 feet) of usable flat load length; you can squeeze longer items between the front seats.
- Height from floor to load cover: roughly 20–22 inches in the upper-floor position, depending on trim and tire inflation.
- Height to roof (no cover): closer to 32–34 inches at the rear, though the sloping hatch will cut into the top corners.
Mind the sloping hatch

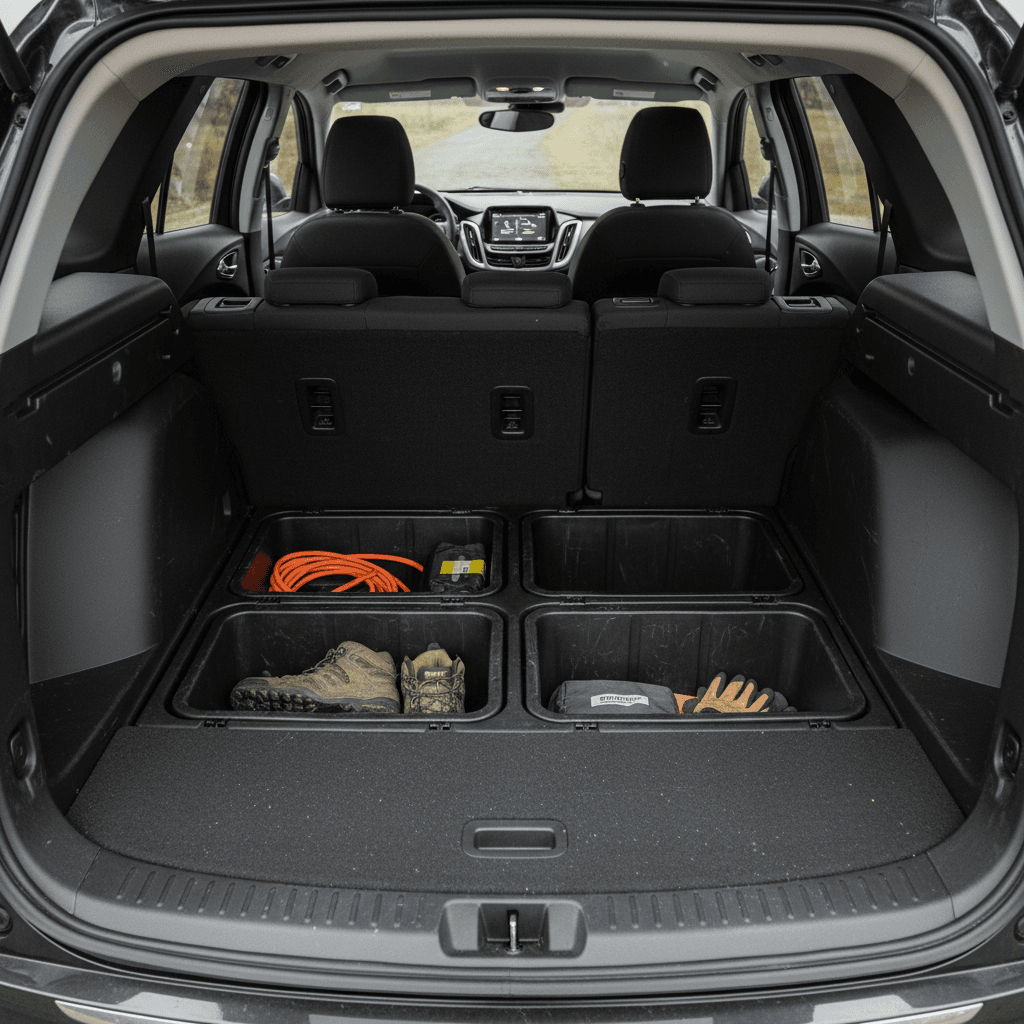

Two-level load floor and hidden storage
How the Equinox EV’s cargo floor works
A simple but clever setup that makes 57.2 cubic feet feel bigger.
Upper position: flat load floor
In the upper position, the cargo floor lines up almost seamlessly with the folded rear seatbacks. This is your go-to setting for:
- Sliding in suitcases or storage bins
- Letting dogs hop in and out without a step
- Car-camping with a mattress or sleeping pad
Lower position: maximum depth
Drop the floor to its lower position and you gain a few extra inches of vertical space. Great when you need:
- Extra headroom for coolers or tall boxes
- To stack soft bags on top of hard luggage
- A little more depth without folding the seats
Underfloor bin: hidden bonus
Beneath that panel lives a sizable hidden storage bin. Owners use it for:
- Charging cables and adapters
- Emergency kits and tools
- Items you don’t want rolling around in view
Practical perk for EV owners
Real-world test: what actually fits back there?
Everyday errands
- Groceries: A week’s worth for a family of four fits behind the second row with room to spare. The lower-floor setting keeps bags upright.
- Strollers: Most mid-size and even some jogging strollers fit crosswise. Measure width if yours is extra wide at the wheels.
- Pet crates: Medium crates typically slide straight in; large crates may require folding the 60 side of the 60/40 split.
Weekend trips and gear
- Suitcases: Expect 4–5 large rolling bags plus a couple of duffels behind the second row if you pack thoughtfully.
- Bikes: With the rear seats folded, most adult bikes fit with the front wheel off; mountain bikes may go in diagonally.
- DIY runs: Flat-pack furniture, lumber up to ~6 feet, and boxes fit easily with the seats down, just watch that hatch angle.
Bring a tape measure, not just your phone
Equinox EV vs. gas Equinox cargo space
Here’s where expectations need a little calibration. The gas-powered Equinox is already a known quantity in rental car fleets and cul-de-sacs across America. The Equinox EV gives up a few cubes to the gas model, but it fights back with a better-shaped, more EV-friendly space.
Chevy Equinox EV vs. gas Equinox cargo space
Headline cargo numbers for the all-electric Equinox EV versus the current gasoline Equinox.
| Model | Behind 2nd row (cu ft) | Max cargo (cu ft) | Quick takeaway |
|---|---|---|---|
| Equinox EV | 26.4 | 57.2 | Slightly less volume, flatter floor, large underfloor bin. |
| Equinox (gas) | ~29.8–29.9 | ~63.5 | More raw volume, more traditional upright hatch shape. |
Numbers are approximate and can vary slightly by model year and trim, but this is the general pattern.
When the gas Equinox makes more sense
How Equinox EV cargo space compares to other EV SUVs
Equinox EV vs key EV cargo rivals
Ballpark cargo specs, so you know where Chevy lands.
Tesla Model Y
Often quoted as about 30 cu ft behind the second row and over 70 cu ft max. The Tesla is the cargo champ, especially with its deep rear well and frunk.
If outright space is the brief, the Y wins. The Chevy counters with a simpler cabin and, in used form, potentially lower purchase costs.
Hyundai Ioniq 5
Roughly 27–28 cu ft behind row two and about 59–60 cu ft max. On paper, this is extremely close to the Equinox EV.
The Ioniq’s sliding rear seat can trade passenger legroom for more cargo, while the Chevy gives you the two-level floor and a simpler split bench.
Nissan Ariya & others
The Ariya, VW ID.4, and Ford Mustang Mach-E tend to hover in the 22–30 cu ft range behind row two and 55–65 cu ft total.
In other words: the Equinox EV is right in the thick of the pack, neither a space-saver nor a space-waster.
If you picture the compact EV SUV segment as a high school lunch table, the Tesla is the tall kid in the back, the Ariya and ID.4 are the average-height crowd, and the Equinox EV is standing right next to the Ioniq 5, solidly normal-sized with a good haircut.
Cargo setup tips for families and road trips
Make the most of Equinox EV cargo space
1. Decide on floor height before you pack
Use the upper position for a flat load floor and easy sliding of suitcases or a sleeping pad. Drop it to the lower position when you need more vertical space for coolers, bins, or stacked bags.
2. Exploit the 60/40 split
Put taller kids or adults behind the front passenger and fold the smaller side of the rear seat for long objects, skis, a ladder, a stroller frame. You’ll keep four real seats and gain serious cargo length.
3. Use soft bags, not hard shells
Because of the sloping hatch, soft duffels and backpacks pack more efficiently than hard-sided luggage. They’ll mold into the curve of the roof and the corners of the hatch area.
4. Reserve the underfloor bin for must-haves
Store charging cables, tire inflator, first-aid kit, and a compact emergency tool kit beneath the floor. That way, your day-to-day cargo area stays clean, and you’re never digging through luggage to reach essentials.
5. For car-camping, measure diagonals
If you’re planning to sleep in the back, fold the seats, raise the floor, and measure corner-to-corner. Many owners run a diagonal sleeping pad rather than straight front-to-back for extra headroom.
6. Don’t forget roof options
If cargo is the one thing holding you back from an Equinox EV, remember that a decent roof box can add the equivalent of another 15–20 cubic feet for seasonal trips while keeping the cabin calm.
Shopping used Equinox EV: cargo checks to make
On the used market, two Equinox EVs with identical odometers can live very different lives. One has hauled kids, bikes, and lumber; the other has spent its time commuting with a laptop bag. The cargo area is where that story shows.
- Inspect the load floor panel: Make sure it raises and lowers cleanly and isn’t warped or cracked. Excessive sagging can hint at chronic overloading.
- Check the underfloor bin: Look for standing water, rust, or damaged trim. Confirm the mobile charge cord is present if it’s supposed to be included.
- Look at side panels and seatbacks: Deep gouges, missing hooks, or torn fabric suggest heavy, hard use. That’s not an automatic deal-breaker, but it’s negotiation material.
- Fold the rear seats yourself: They should drop with one hand and land nearly flat. If they don’t lock properly, you’ll hear it over every railroad crossing.
- Test the hatch: Open and close repeatedly. Listen for creaks or misalignment that might hint at a previous rear impact.
Use space savvy when you buy
Ready to find your next EV?
Browse VehiclesChevrolet Equinox EV cargo space FAQ
Frequently asked questions about Equinox EV cargo dimensions
Bottom line: Is the Equinox EV big enough for you?
The Chevrolet Equinox EV cargo space dimensions land it squarely in the middle of the compact EV SUV class: not a rolling storage unit, but far from cramped. The numbers, 26.4 cubic feet behind the rear seats and 57.2 with them folded, only matter in how they line up with your life. If your cargo is everyday stuff, kids, and luggage, the Equinox EV’s flat floor, hidden bin, and easy-fold seats make it an honest, useful tool.
If, on the other hand, you routinely haul tall furniture, Great Danes, or six bikes, you’ll want to look harder at a roomier EV or think about a roof box. Either way, if you’re considering a used Chevrolet Equinox EV, a platform like Recharged can simplify the decision: you’ll see transparent pricing, get a verified Recharged Score battery report, and you can ask an EV specialist to walk you through exactly how your gear will fit before you ever sign anything.
