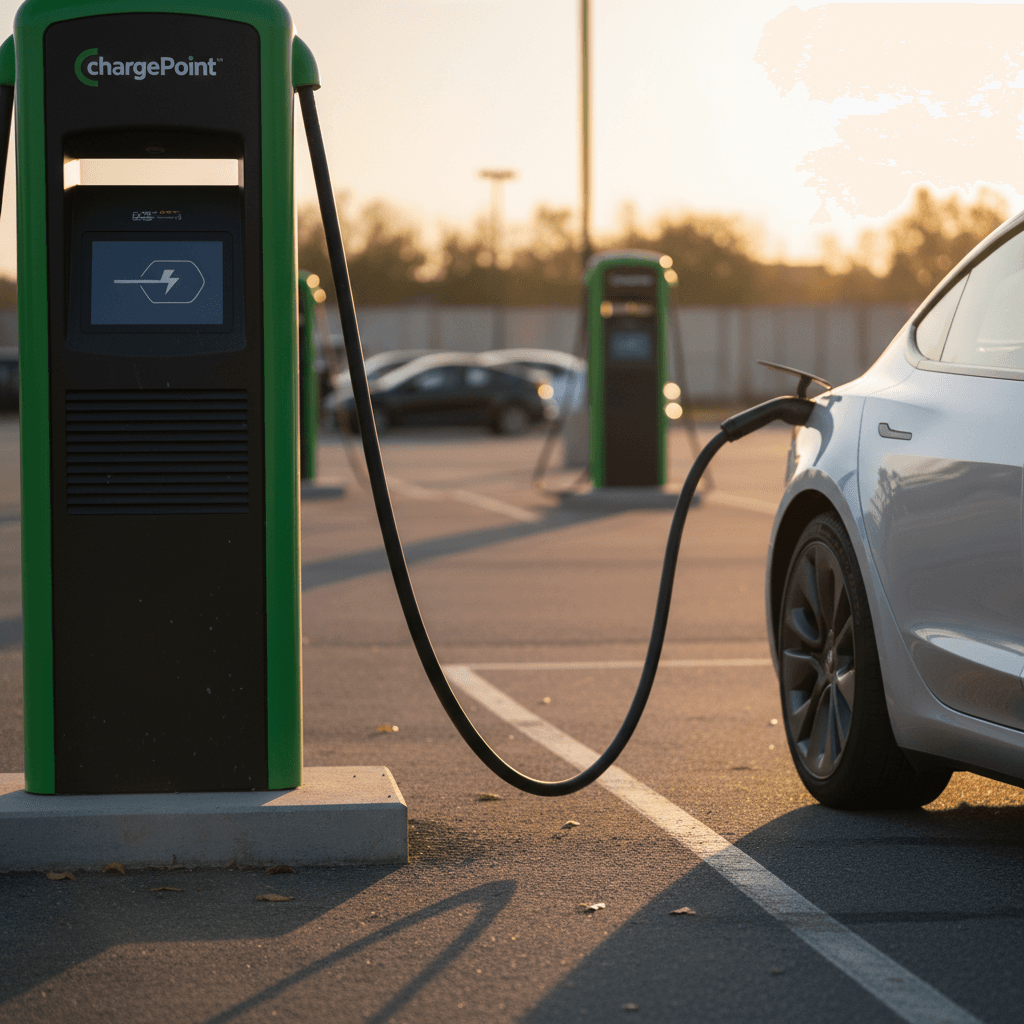

Pulled into a travel plaza lately and noticed a row of tall, slim pillars with thick cables and glowing screens? Those are what many drivers now call charging towers, the DC fast charging hardware that’s quickly becoming the visual symbol of the EV era. Understanding how these towers work, what they cost, and how they fit into your ownership experience is just as important as picking the right electric car.
Quick definition
In EV lingo, a charging tower usually refers to a tall, free‑standing DC fast charger or the pedestal that hosts one or more DC fast charging cables. It’s the piece of hardware you park next to, tap, and plug into, often fed by larger power electronics in cabinets nearby.
What is a charging tower?
There’s no official standard that uses the phrase charging tower, but it has become a common way to describe vertical EV charging pedestals, especially high‑power DC fast chargers. Think of a charging tower as the EV equivalent of a gas pump: the visible piece of equipment where you start the session, see pricing and status, and plug in.
- For AC (Level 2) charging, towers are usually shorter pedestals in parking lots, malls, workplaces, and apartments.
- For DC fast charging (sometimes called Level 3), charging towers are taller posts with big cables designed to deliver 50–350 kW (or more) for highway stops.
- The actual power electronics (inverters, transformers, switchgear) may be inside the tower or in separate cabinets behind a fence.
Why the word “tower”?
Operators use taller, slim pedestals because they’re easier to see from a distance, give more room to route thick cables cleanly, and make it possible to serve vehicles with charging ports in very different locations (front, rear, sides).
How EV charging towers actually work
Under the skin, a DC fast charging tower is basically a big, ruggedized power supply with a user interface. It pulls AC power from the grid, converts it to high‑voltage DC, and regulates that flow into your battery based on what your car requests.
Inside a modern DC charging tower
Four core systems quietly working while you grab coffee
Power conversion
Charging control
Thermal management
Safety & billing
Don’t confuse tower size with speed
A tall, imposing charging tower doesn’t always mean ultra‑fast charging. The site’s grid connection and how many chargers share that capacity often matter more than the physical size of the tower.
Charging speeds, voltage, and connector types
When drivers talk about charging towers, they’re usually thinking about speed. How fast you charge depends on three things: the tower’s power rating, your EV’s maximum DC charging capability, and the state of charge and temperature of your battery.
Typical EV charging tower power levels
How “fast” towers translate into real‑world charging time (rough, U.S.‑focused numbers)
| Type | Power rating | Typical use case | Approx. miles added in 30 minutes* |
|---|---|---|---|
| Level 2 pedestal (AC) | 7–19 kW | Workplaces, apartments, public parking | 15–40 mi |
| Entry DC charging tower | 50–75 kW | Older sites, rural locations, fleets | 60–90 mi |
| Standard highway fast tower | 100–150 kW | Most newer highway stops and travel plazas | 80–150 mi |
| High‑power tower (HPC) | 200–350 kW+ | Premium highway sites, future‑proofed corridors | 140–250+ mi |
Actual speeds depend heavily on your specific EV, battery temperature, and how busy the site is.
Connectors you’ll see on towers
In the U.S., DC charging towers today typically offer CCS1 and increasingly NACS (Tesla‑style) plugs. Older CHAdeMO towers are fading away. For AC pedestal towers, J1772 remains standard except on Teslas, which use NACS.
From the car’s perspective, a charging tower is just a power source it negotiates with. Many EVs built since 2021 can accept 100–200 kW for at least a portion of the session, but plenty of used EVs top out closer to 50–125 kW. If you buy a used EV, matching its charging curve to the kind of towers in your area is more important than chasing the biggest number on the marketing brochure.
Where you’ll see charging towers in the U.S. today
Charging towers have followed the demand curve: first along highway corridors, then at travel centers, grocery stores, and urban hubs. Globally, the EV charging infrastructure market is estimated around $40–50 billion in 2025 and is projected by several analysts to grow more than eight‑fold by the mid‑2030s, driven largely by DC fast charging deployments.
Common places you’ll find charging towers
Different operators, similar hardware layouts
Highways & interstates
Retail & grocery parking
Logistics & fleet depots
Rollout reality check
Even with billions committed to infrastructure, public charging still lags EV adoption in many regions. The U.S. added tens of thousands of public charging points in 2024, but fast chargers remain concentrated around major metros and interstates, leaving rural EV drivers more dependent on slower AC options.
Costs: How much they cost to build, and to use
From the outside, a charging tower looks simple. Behind the scenes, it’s an infrastructure project. That’s why a new fast‑charging plaza costs far more than just the metal tower itself.
1. Installation costs for operators
Numbers vary widely, but in 2025 a new DC charging tower in the U.S. typically costs operators on the order of tens of thousands of dollars per plug once you include:
- Engineering design and permitting
- Utility upgrades (transformers, new service lines)
- Power electronics cabinets, switchgear, and safety equipment
- Civil work (trenching, concrete pads, canopies, parking re‑striping)
- The tower hardware itself plus networking and payment systems
High‑power sites can easily cross six figures per location, especially where the grid connection has to be upgraded.
2. What drivers pay at the tower
As a driver, you see none of that complexity, just a price per kWh or per minute. In many U.S. states, DC fast charging runs in the ballpark of:
- Roughly $0.30–$0.60 per kWh at many public fast‑charging networks
- Higher prices in high‑demand urban locations or where demand charges are steep
- Membership discounts or off‑peak rates on some networks
Home Level 2 charging from a typical residential rate is usually substantially cheaper per mile than public fast charging.
How to keep your charging bill down
Use charging towers for trips and time‑sensitive top‑ups, not your daily energy needs. Most EV drivers save money by doing 70–90% of their charging at home or work on Level 2, and using towers only when they need the speed.
Visitors also read...
Charging tower pros and cons vs other setups
From an infrastructure perspective, charging towers are just one way to get electrons into cars. Wall‑mounted DC units, curbside posts, and even battery‑backed cabinets are all in the mix. But towers dominate most public fast‑charging projects for practical reasons.
Pros and cons of tall charging towers
Why networks use them, and when they’re not ideal
Advantages
- Visibility: Easy for drivers to spot from the road or parking lot.
- Flexibility: Can reach charge ports in different positions on different vehicles.
- Durability: Built to survive weather, parking‑lot abuse, and round‑the‑clock use.
- Scalability: Multiple towers can share a common power cabinet, lowering average cost per plug.
Drawbacks
- High upfront cost: Especially when paired with substantial utility upgrades.
- Grid impact: Clusters of high‑power towers can stress local infrastructure if not planned carefully.
- Space needs: Requires dedicated parking and traffic flow design.
- Utilization risk: Poorly sited towers can sit underused for years.
Why reliability matters more than aesthetics
A sleek charging tower that doesn’t start a session is worse than an ugly box that works every time. As a driver, prioritize networks with strong uptime reputations over whatever looks newest or tallest.
What used EV buyers should know about charging towers
If you’re shopping for a used EV, the presence of charging towers on your regular routes changes the equation, but it doesn’t erase fundamentals. Battery health, charging speed, and connector support all determine how well your car and those towers will get along.
Checklist: Matching your used EV to real‑world charging towers
1. Understand your car’s DC peak rate
Look up your EV’s <strong>maximum DC charging power</strong>. If your car tops out at 70 kW, paying a premium to park at a 350 kW tower won’t make it charge any faster after the first few minutes.
2. Look at the whole charging curve
Peak power only lasts for part of the session. Some EVs fall off sharply after 30–50% state of charge. That’s where real‑world testing and tools like the <strong>Recharged Score battery health report</strong> help you know what to expect from a used pack.
3. Check connector compatibility where you live
In 2025, many new sites offer both CCS and NACS, but legacy infrastructure may not. Before you buy, open apps from major networks and see which plugs are common on your routes.
4. Map your non‑home charging options
If you can’t install home charging, your life will depend on towers and Level 2. Use PlugShare or network apps to see how dense your local infrastructure really is, not just on marketing maps.
5. Factor charging costs into total ownership
A used EV with cheap home charging can beat many gas cars on running costs. An EV that relies heavily on expensive fast‑charging towers may not. When you shop on Recharged, compare monthly payment plus realistic charging costs against your current fuel spend.
6. Inspect charging ports and cables
On a test drive, plug into a nearby public tower if possible. Confirm the connector fits cleanly, the latch works, and your car accepts a DC session without errors.
How Recharged helps here
Every vehicle sold on Recharged includes a Recharged Score Report with verified battery health and charging performance. That gives you a realistic picture of how your next EV will use fast‑charging towers, not just what the window sticker claimed when it was new.
How to use a DC charging tower step by step
Different networks have different apps and branding, but the playbook is remarkably consistent. Here’s a generic sequence so you know what to expect the first time you pull up to a tower.
Step‑by‑step: Using a public charging tower
1. Park so the cable comfortably reaches
DC cables are thick and sometimes short. Re‑position the car if needed so the cable doesn’t have to stretch or bend sharply.
2. Wake the tower and choose your stall
Tap the screen or press the start button. Some towers have a number for each parking space, make sure you’re activating the right one.
3. Start the session (app, RFID, or card)
Follow on‑screen prompts. Many networks let you start with their app, a contactless credit card, or an RFID membership card or key fob.
4. Plug in firmly until it clicks
Remove the connector from the holster, align it with your charge port, and push until you feel a solid click. A loose connector can cause faults or slow charging.
5. Watch for confirmation
The tower and your car will handshake for a few seconds. Look for indications on both the screen and your vehicle that charging has started and ramped up.
6. Unplug, stow the cable, and check your receipt
End the session via the app or on‑screen button if required, wait for any locking pins to release, then return the cable to its holster. Confirm your cost and kWh in the app so you can track trip expenses.
Cold weather and tower performance
In winter, a cold battery can dramatically limit how much power a tower can safely deliver. Use your car’s battery pre‑conditioning feature (if available) when navigating to a fast charger, and don’t be surprised if you see lower kW numbers than the big font on the side of the tower.
Future trends: Will charging towers dominate?
The shape of the pedestal matters a lot less than the economics behind it. Still, the industry is clearly converging on tall, modular charging towers for most public DC sites, with a few trends worth watching over the next decade.
Where charging towers are headed next
For drivers
More <strong>high‑power towers</strong> (200–350 kW) on major corridors as networks chase throughput and revenue per stall.
Growing support for <strong>NACS connectors</strong> alongside CCS, reducing adapter juggling for new EVs.
Better <strong>real‑time data</strong> in apps (live power output, queue times, pricing) so you’re not guessing when you arrive.
Integration with <strong>route planners</strong> in the car, automatically pre‑conditioning the battery before you reach a tower.
For site hosts and operators
More sites using <strong>shared power cabinets</strong> that dynamically allocate power between towers based on demand.
Pairing towers with <strong>on‑site batteries</strong> and solar to shave demand charges and keep sessions running during brief grid issues.
Tighter <strong>uptime standards</strong> from regulators and automakers as public charging reliability becomes a political issue, not just a customer complaint.
Experimentation with <strong>pull‑through layouts</strong> and higher canopy clearances to serve pickups, vans, and trailers without awkward parking maneuvers.
Why this matters to a used‑EV shopper
The direction of charging tower investment tells you where the market expects EV travel demand to grow. If your local area is seeing new fast‑charging towers, that’s a sign the ecosystem around used EVs is getting healthier, even if policy headlines feel messy.
Charging tower FAQ
Frequently asked questions about charging towers
Key takeaways
Charging towers are simply the public face of a much bigger EV charging system. For drivers, what matters isn’t the shape of the pedestal but where towers are located, how reliable they are, how your EV charges on them, and what they cost per mile. If you’re considering a used EV, pay close attention to battery health, peak DC charge rate, and the mix of towers and Level 2 options in your daily life.
As EV adoption grows, you’ll see more towers at travel centers, supermarkets, and urban hubs, alongside a healthy market for used EVs. Platforms like Recharged exist to connect those dots, pairing transparent battery health reporting with expert support so you can choose an EV that fits both the charging towers on your map and the budget in your wallet.
