If you’re planning to haul bikes, a cargo box, or even a kayak on your 2024–2025 Acura ZDX, understanding the **roof rack weight limit** is just as important as knowing your towing capacity. Overloading the roof can hurt handling, reduce range, and in the worst case damage your new EV. Let’s walk through what Acura actually allows, how aftermarket racks fit into the picture, and how to plan real‑world loads safely.
The short answer
Acura ZDX roof rack weight limit: quick summary
Key roof and payload numbers for the 2024–2025 Acura ZDX
For planning purposes, it’s safe to treat **70 kg (about 154 lb)** as the working **roof rack weight limit** on the ZDX. That figure needs to cover everything on top: crossbars, mounts, boxes, bikes, skis, and any other accessories. Even if you install an aftermarket rack rated for more, you’re still bound by the **lower of two numbers**: 1. The vehicle’s **maximum roof cargo** rating (about 70 kg / 154 lb for the ZDX), and 2. The **rack or crossbar’s own rating** (often 150–165 lb on modern systems).
Always confirm in your specific owner’s manual
How Acura defines roof load on the ZDX
When you look at Acura’s spec sheets and accessory catalogs, you’ll see a couple of different but related numbers: - **Maximum roof cargo / roof load** – The total allowable weight on the roof structure itself. For the current ZDX, that’s roughly **70 kg (154 lb)**. - **Crossbar or rack load rating** – The limit for that specific rack system. Acura’s OEM ZDX crossbars are rated at **154 lb (70 kg)**, matching the roof. - **Maximum payload** – The total amount of weight you can add to the vehicle (people + luggage + accessories), often around **455 kg (about 1,000 lb)** on the ZDX. It can be confusing, but for roof cargo planning, you only need to remember one rule: **the lightest link in the chain wins**. If your rack is rated to 165 lb but Acura caps the roof at 154 lb, 154 lb is your real limit.
Weight terms that matter for your Acura ZDX
Use this table to decode the jargon you’ll see in spec sheets and owner’s manuals.
| Term | What it means | Why it matters for roof racks |
|---|---|---|
| Max roof cargo / roof load | Highest total weight the roof structure is designed to support while driving. | This is the **hard cap** for everything you mount on the roof. |
| Crossbar / rack capacity | Limit the rack manufacturer assigns to its own system. | You must stay below the lower of **this** or the vehicle’s roof load. |
| Max payload | Total extra weight the ZDX can carry (people + cargo + accessories). | Roof cargo is part of this number; a fully loaded cabin means you should carry less on top. |
| Towing capacity | Max trailer weight the vehicle can pull safely. | Separate from roof load, but both contribute to the overall strain on your EV. |
In practice, the roof load limit is separate from towing and payload, but all of them share the same 4 wheels and brakes, so stay conservative if you’re loading all three at once.
Where the 70 kg / 154 lb ZDX roof number comes from
OEM Acura ZDX crossbars vs. aftermarket racks

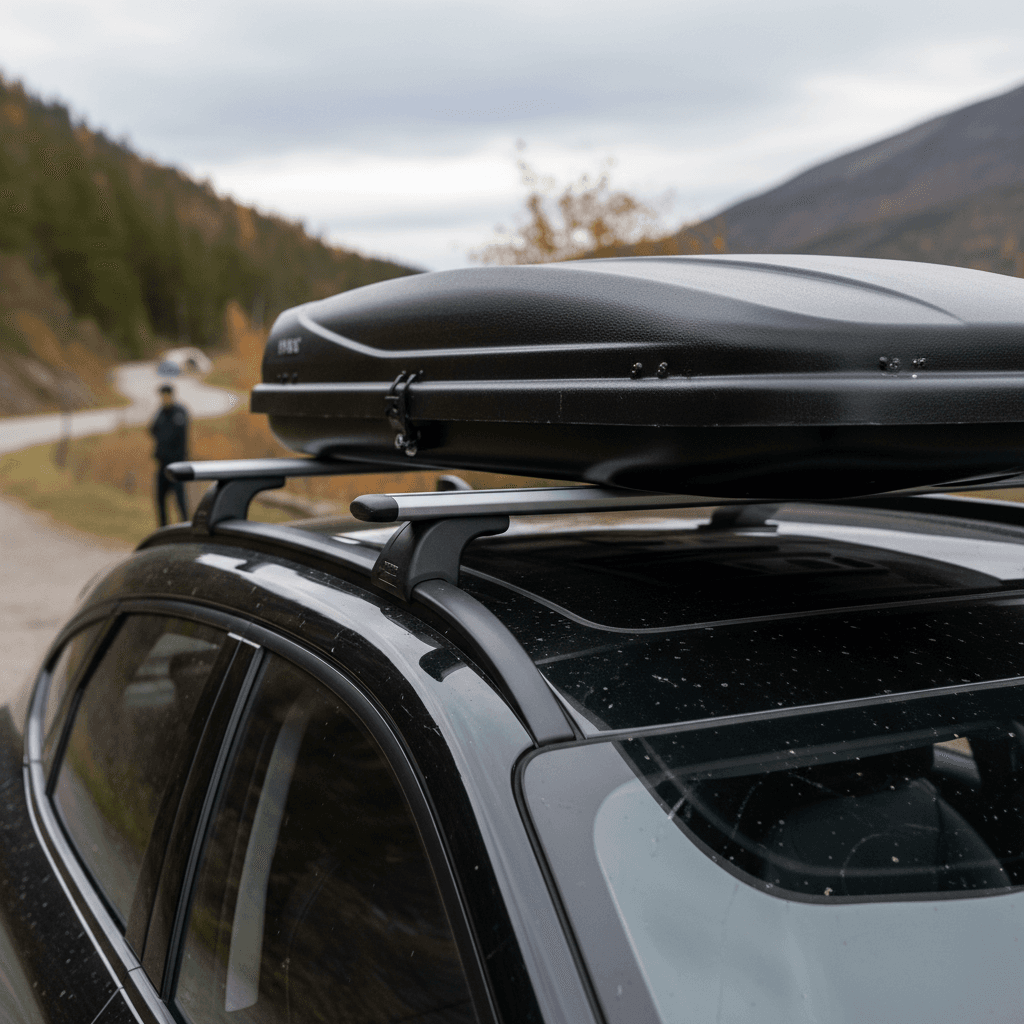

Because the 2024–2025 Acura ZDX ships with integrated roof rails on most trims, you have two main choices: **Acura’s own accessory crossbars** or **aftermarket systems** from brands such as Yakima, Thule, and others. Each comes with its own rating, and its own fine print.
Choosing crossbars for your ZDX
How OEM Acura crossbars compare to popular aftermarket systems
Acura OEM crossbars
Typical rating: 154 lb (70 kg)
- Engineered specifically for the ZDX roof rails.
- Weight limit usually matches Acura’s roof cargo rating.
- Clean fit and finish; integrates well with Acura accessories.
- Best choice if you value simplicity and warranty clarity.
Aftermarket systems (Yakima, Thule, etc.)
Typical rating: 150–165 lb
- Vehicle‑specific fit kits clamp to the ZDX’s flush rails.
- Some towers and bars are structurally rated higher than the vehicle’s roof limit.
- Excellent for bike racks, ski racks, and cargo boxes.
- Still constrained by Acura’s roof load rating.
Budget and unknown‑brand racks
Typical rating: 120–165 lb (check closely)
- May advertise high capacities without clear testing standards.
- Fit quality on the ZDX’s tapered flush rails can vary.
- Support and documentation may be limited.
- Use extra caution and verify all numbers before loading up.
Look at three labels, not just one
Static vs. dynamic load on your ZDX roof
You’ll often see roof rack conversations mix **static** and **dynamic** load. Most manufacturer ratings, including Acura’s, refer to **dynamic load**, which is the weight allowed while you’re driving. Static load (when the car is parked) can be substantially higher because you’re not dealing with braking, cornering, or potholes.
Dynamic load (while driving)
- This is what the **70 kg / 154 lb** ZDX roof limit refers to.
- Accounts for forces from wind, bumps, braking, and cornering.
- Conservative by design to protect the roof structure and rails.
- What you must follow for highway use and daily driving.
Static load (parked)
- Actual structural capacity when the vehicle is not moving is higher.
- That’s why many SUVs can support rooftop tents and sleepers when parked.
- However, Acura does **not** publish an official static rating for the ZDX.
- If you’re considering a rooftop tent, work with a rack specialist and stay extremely conservative.
Rooftop tents on a ZDX? Proceed with caution.
Real‑world packing examples for the ZDX roof
Numbers are helpful, but it’s easier to work with concrete examples. Below are typical setups ZDX owners might consider, with rough weight estimates. Always confirm actual product weights and double‑check the math before you drive.
Sample ZDX roof‑rack setups and approximate weights
These examples assume a 154‑lb working roof limit for a 2024–2025 Acura ZDX with OEM or similar‑capacity crossbars.
| Setup | Estimated component weights | Approx. total roof load |
|---|---|---|
| Ski weekend (cargo box + skis) | Crossbars: 12–15 lb Medium roof box: 35–45 lb Skis & poles for 4: 40–60 lb | ~90–120 lb |
| Family road trip (large cargo box) | Crossbars: 12–15 lb Large box: 45–55 lb Luggage & gear: 60–80 lb | ~120–150 lb |
| Two bikes on roof | Crossbars: 12–15 lb Two upright bike racks: 20–30 lb total Two bikes: 55–70 lb total | ~90–115 lb |
| Kayak and accessories | Crossbars: 12–15 lb Kayak cradle set: 10–15 lb Single 10–12 ft kayak: 40–60 lb Paddles & misc.: 5–10 lb | ~70–100 lb |
Weights are approximate and for illustration only. Always verify your specific gear and stay below the most conservative limit.
A simple formula you can trust
How roof weight affects range and handling
With any EV, weight and aerodynamics are the hidden levers behind range. The ZDX is no exception. Adding 100–150 lb on the roof does two things at once: it raises the center of gravity and it creates more aerodynamic drag (especially with a big cargo box or a couple of bikes up there).
- **Range impact:** A loaded roof box at highway speeds can trim your highway range noticeably, often by 5–15% depending on speed, wind, and how bulky your gear is.
- **Handling:** Extra mass high above the centerline increases body roll and can make emergency maneuvers feel less stable. That’s one reason Acura keeps the roof number modest.
- **Braking:** More total weight means longer stopping distances. Combine a full cabin, roof load, and possibly a trailer, and you’ll want to leave extra following distance.
- **Noise:** Even well‑designed racks and boxes can add wind noise. Make sure crossbars are installed in the recommended positions to minimize turbulence.
Range‑friendly packing for your ZDX
Roof‑rack safety checklist for Acura ZDX owners
Pre‑trip checklist for your ZDX roof rack
1. Confirm limits in the owner’s manual
Look up the **maximum roof cargo** and **roof rack** ratings for your exact ZDX trim and model year. Use the lowest number you find as your planning limit.
2. Add up all rooftop weights
Include crossbars, towers, clamps, boxes, racks, bikes, skis, kayaks, everything. A digital luggage scale can help you get accurate numbers at home.
3. Check the crossbar spacing and torque
Install crossbars at the positions Acura or the rack maker specifies. Use a torque wrench or the supplied tool to tighten to spec, then recheck after the first 50–100 miles.
4. Keep heavy items inside the cabin
Save the roof for bulky but lighter gear. Put toolboxes, water jugs, and dense luggage lower in the cargo area over or between the axles.
5. Secure and test for movement
Shake bikes, boxes, and mounts firmly before you hit the highway. If anything shifts by hand, it can move at 70 mph. Tighten or re‑arrange until everything is rock solid.
6. Adjust your driving style
With weight on the roof, take ramps more gently, leave extra braking distance, and keep speeds down in crosswinds. EV torque makes it easy to go fast; your roof load prefers that you don’t.
Shopping used ZDX models: what to check on the roof system
If you’re looking at a **used Acura ZDX**, the roof and rack system are worth a closer look, especially if you plan to add gear for road trips, skiing, or camping. Because the current ZDX is a brand‑new EV in the marketplace, you’ll likely be shopping early off‑lease and first‑owner vehicles over the next few years.
What to inspect on the roof
- Roof rails and mounting points: Look for dents, scratches, or signs the rails have been overloaded or improperly used.
- Crossbars: If the ZDX comes with OEM or aftermarket bars, check for bends, corrosion, or cracked end caps.
- Panoramic glass: Inspect the glass around the rail bases for chips or stress marks from over‑tightened clamps.
- Weatherstripping and seals: Make sure there are no tears or gaps that could lead to water intrusion.
How Recharged can help
On Recharged, every used EV listing includes a Recharged Score Report with battery health diagnostics, photos, and detailed condition notes. While the Score focuses on the high‑voltage system, our EV‑specialist team can also help you assess accessories like roof racks, tow hitches, and charging gear before you commit.
If you’re trading in a current EV and moving into a ZDX or a similar electric crossover, we can help you value your trade, arrange financing, and schedule nationwide delivery, all online.
FAQ: Acura ZDX roof rack weight limit
Frequently asked questions about the Acura ZDX roof rack weight limit
Bottom line: how much can you really carry up top?
On the 2024–2025 Acura ZDX, the practical **roof rack weight limit** is about **70 kg (154 lb)**, and that has to cover everything from crossbars to cargo. Respecting that number isn’t just about protecting the roof, it’s about preserving range, braking performance, and stability in an already heavy, high‑performance EV.
If you stay below the most conservative rating you can find, put heavier items in the cargo area, and double‑check your hardware before every long trip, the ZDX will happily carry your bikes, skis, or cargo box for years to come. And if you’re shopping for a **used ZDX or another EV** and want confidence in the battery, the payload, and everything in between, Recharged can help you compare options, understand true running costs, and get into the right electric SUV with transparent data instead of guesswork.
